MOLDED FIBERGLASS GRATING

FRP Molded Grating is our most popular structural composite. It's unitized one piece construction, wide variety of resin formulations, mesh configuarations, surface treatments and available colors make it well suited for numerous applications. It is an ideal replacement for steel or aluminum grating, especially in high corrosive environments.. It offers a superior "non slip" walking surface that will never rust, rot, or corrode and is ideally suited for any wet areas. The slight deflection of the grating provides an ergonomic benefit to your workers by providing a cushioning effect. This built-in deflection makes molded grating the preferred choice for worker platforms and assembly lines. Molded grating is easily fabricated and is the preferred material in applications where multiple penetrations through the grating are required.

Thicknesses:   .50" / .75" / 1.0" / 1.25" / 1.5" / 2"

Mesh Configurations:

 Square Mesh           .75" / 1.5" / 2"

 Rectangular Mesh      1" x 4" / 1.5" x 6"

Panel Sizes: 3' x 10' / 4' x 8' / 4' x 12' / 5' X 10'

(not all thicknesses are available in all panel sizes contact us for your specific application)

Available Surfaces: Meniscus / Applied Grit

 Available Resin Formulations................Available Colors

General Service Polyester                    Yellow / Green / Dark Gray

Industrial Service Isothphalic Polyester             Green /Dark Gray

High Corrosive Service Vinyl Ester                  Orange / Dark Gray

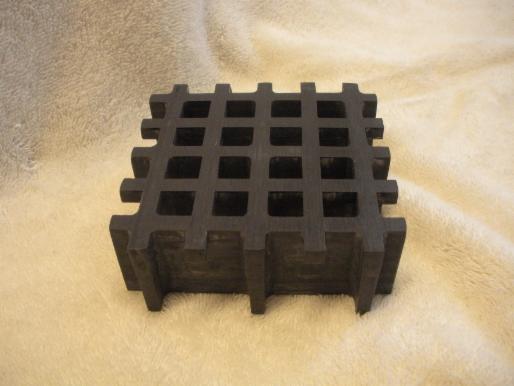

                                         1" / 1.5" / 2" thick molded fiberglass grating.

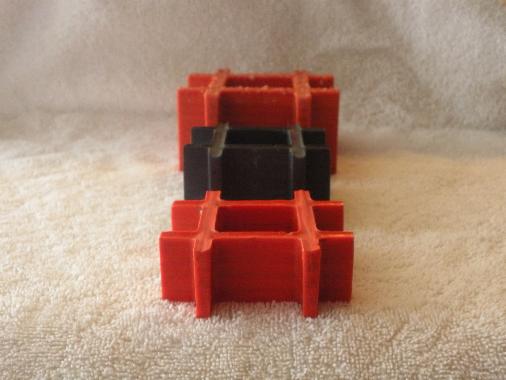

Rectangular Mesh Molded Grating with  grit and meniscus surface.

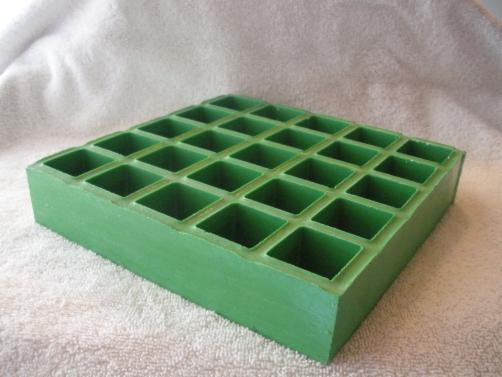

Molded Mini Mesh Grating 3/4" square openings
